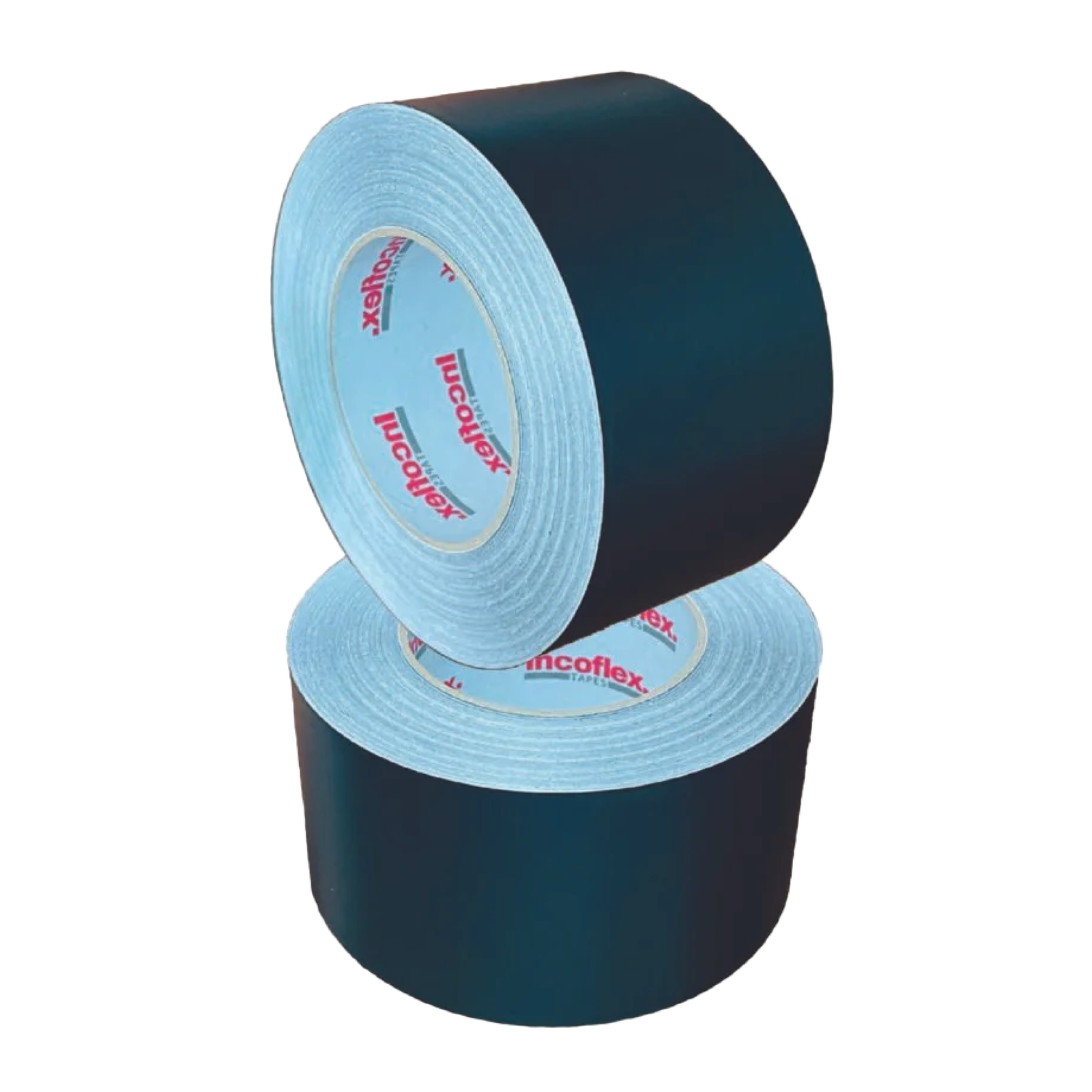

Incoflex PVC Tape

Incoflex PVC Insulation Tape is manufactured with a durable PVC film backing coated with a high performance pressure-sensitive adhesive. It is designed to provide reliable insulation, protection, and sealing across HVAC, electrical, and general insulation applications. Incoflex PVC tape offers excellent conformability, strong adhesion, and long-term performance under varying temperature and environmental conditions.

Technical Data Table
Technical Specifications
Properties Specification Standards
Backing Thickness 65 micron ASTM D3652
Total Thickness 110 +/-5 micron ASTM D3652
Adhesion to steel 20 N/25 inch ASTM D3330
Tensile Strength 1200 gms/25 inch ASTM D3759
Elongation 5% ASTM D3759
Roll Track 10mm
Temperature Range -30 to 120
Standard Sizes Table
Standard Sizes
W(mm) L(mt) Rolls/Box
50 40 24
75 40 16
100 40 12

Applications

  • High dielectric strength for safe and effective insulation
  • Strong adhesion to insulation surfaces, metals, and plastics
  • Excellent flexibility and conformability around bends and joints
  • Resistant to moisture, abrasion, and aging
  • Easy hand tear with clean, smooth application

Features

  • Electrical cable and wire insulation
  • Sealing HVAC insulation joints
  • Wrapping rubber foam insulation
  • General binding and surface protection
  • Line identification and color coding
