Impact Sound Protection

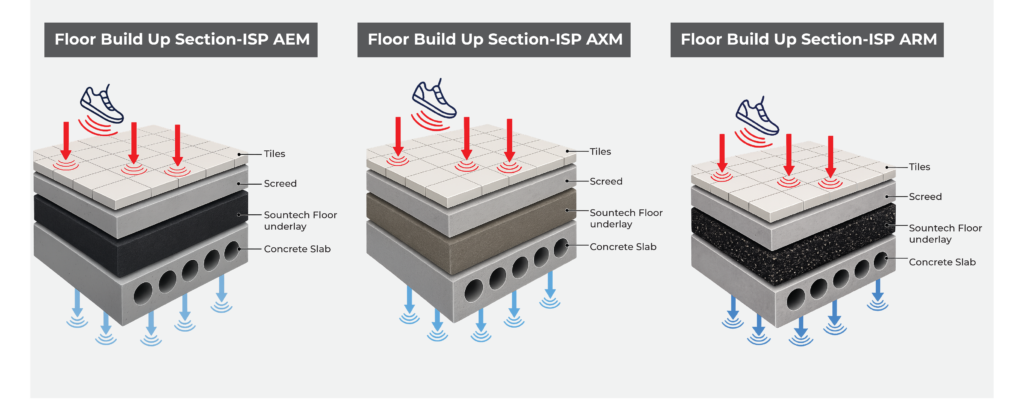

Designed to reduce impact noise such as footsteps and vibrations in flooring systems.
Products

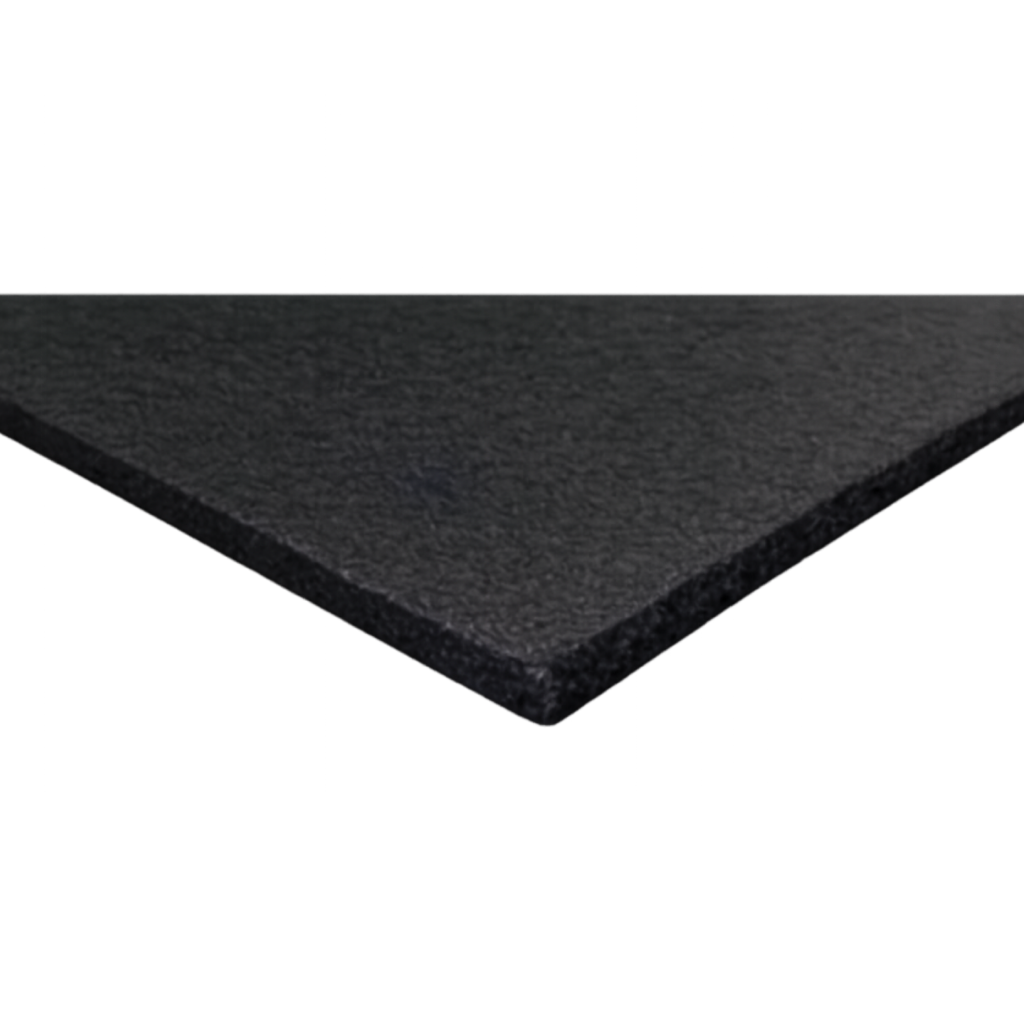

ISP AEM
NBR-based floor underlay

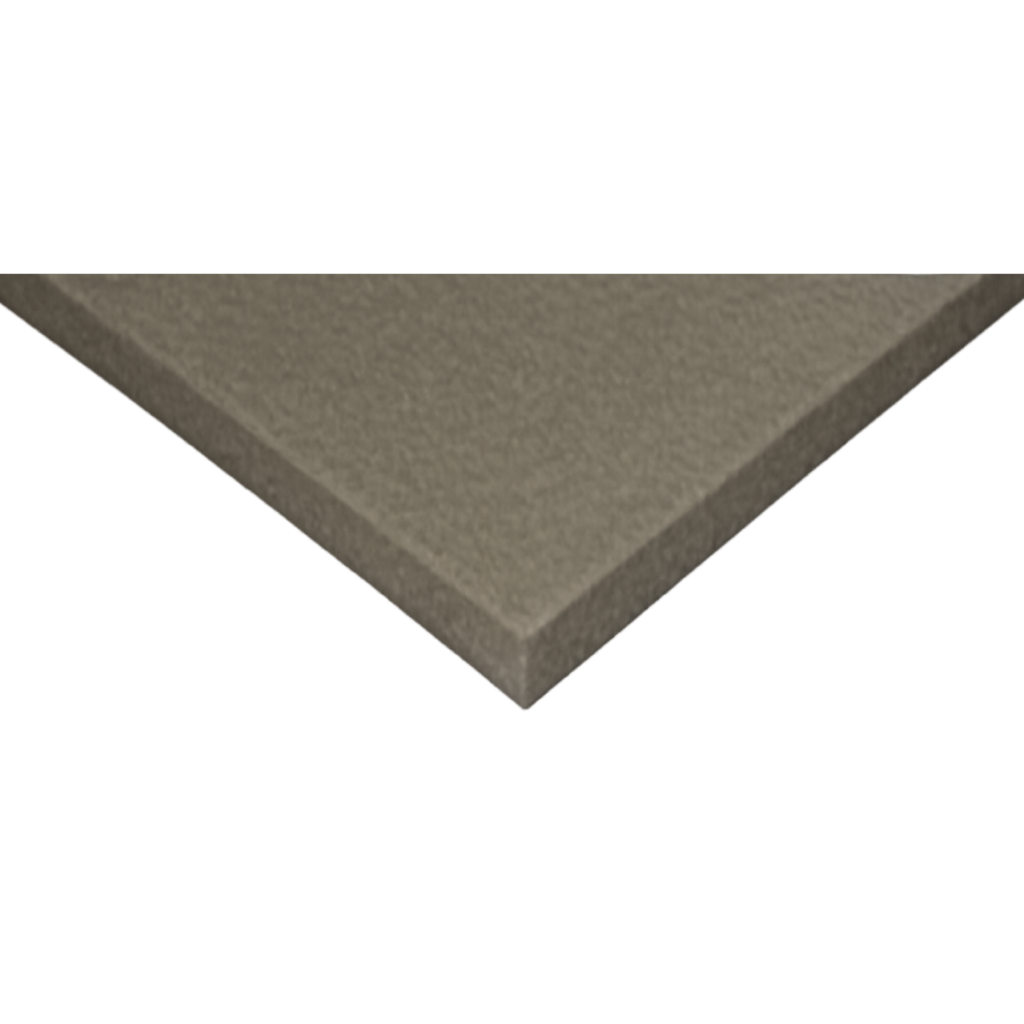

ISP AXM
XPE based floor underlay

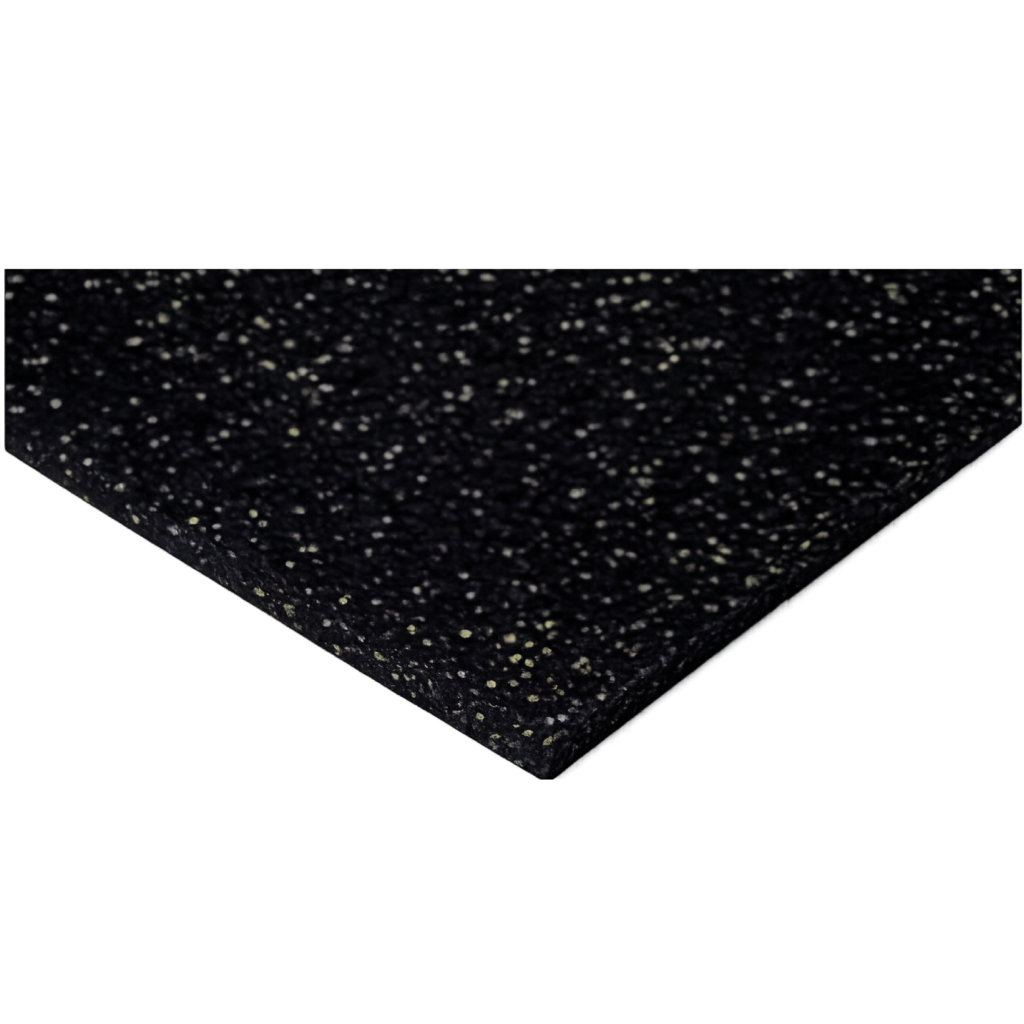

ISP ARM
Recycled rubber floor underlay
| Properties | ISP AEM | ISP AXM | ARM |
|---|---|---|---|
| Density (kg/m³) | 60-85 | 25-35 | 700-750 |
| Thermal Conductivity | 0.034 W/m-K | 0.033 W/m-K | 0.110 W/m-K |
| Temperature Range | -80°C to +110°C | -80°C to +105°C | -80°C to +110°C |
| Water Absorption | Low | Low | Extremely Low |
| Fire reaction | Yes | Yes | Yes |
| Noise Reduction Coefficient | 400 kg/m³ | 400 kg/m³ | 3,000 kg/m³ |
| Moisture Resistance | Excellent | Excellent | Excellent |
| Mold Resistance | 60 MN/m³ | 65 MN/m³ | 75 MN/m³ |
* 3mm thick
| Finish Type | Flooring System | Thickness of Sountech |
ISP AEM | ISP AXM | ISP ARM |
|---|---|---|---|---|---|
| Ceramic Tiles | 140mm Slab 80mm Screed |
3mm | 26dB | 25dB | 22dB |
| Ceramic Tiles | 140mm Slab 80mm Screed |
5mm | 26dB | 25dB | 23dB |
| Vinyl | 140mm Slab 80mm Screed |
3mm | 26dB | 26dB | 25dB |
| Vinyl | 140mm Slab 80mm Screed |
5mm | 26dB | 26dB | 26dB |
| Bare Slab | 140mm Slab 10mm Screed |
3mm | 33dB | 33dB | 32dB |
| Bare Slab | 140mm Slab 10mm Screed |
5mm | 33dB | 33dB | 33dB |
Performance
